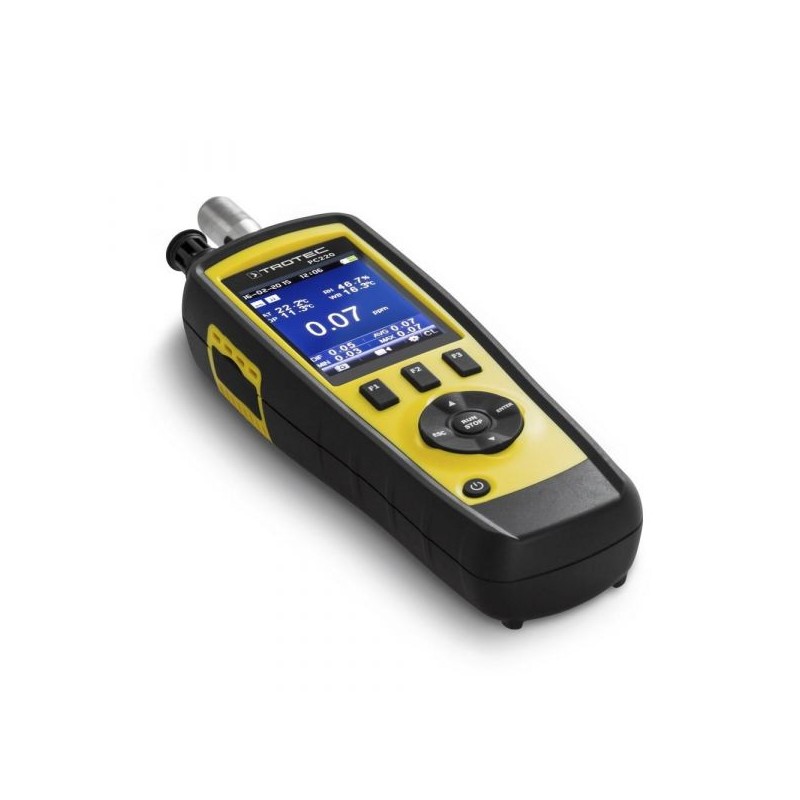

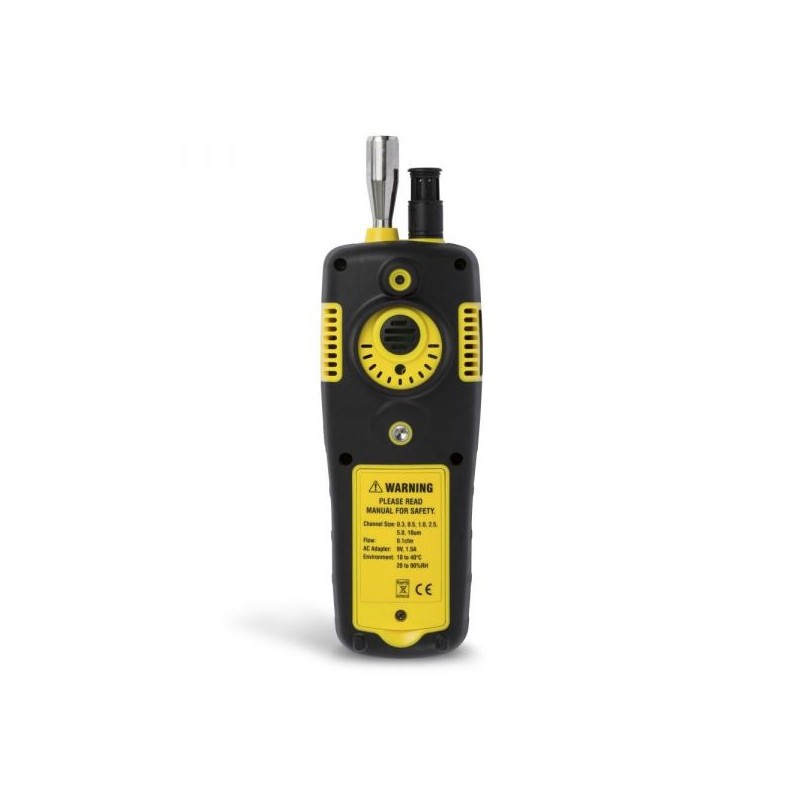

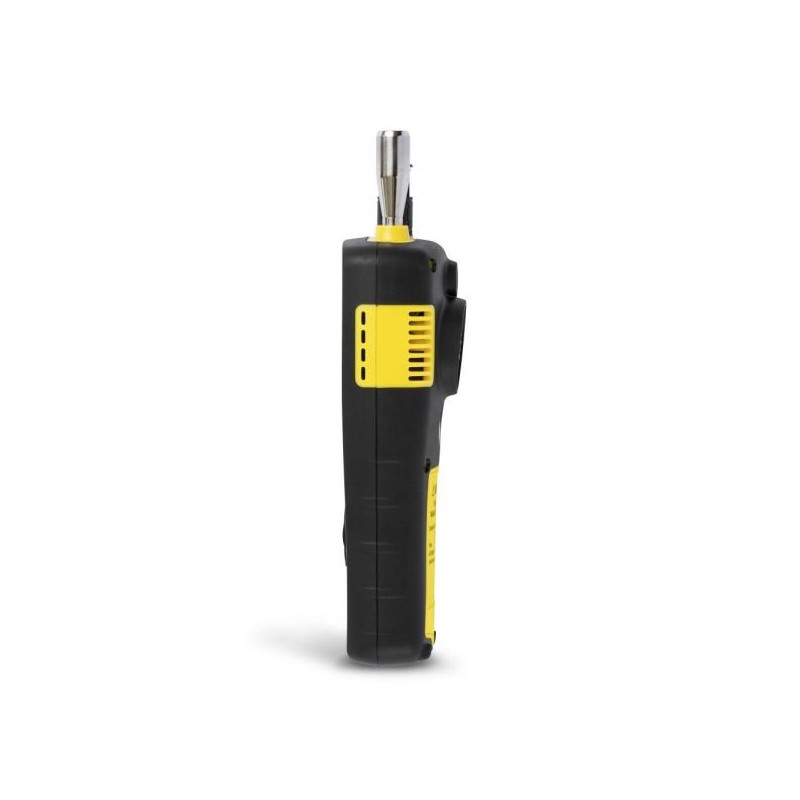

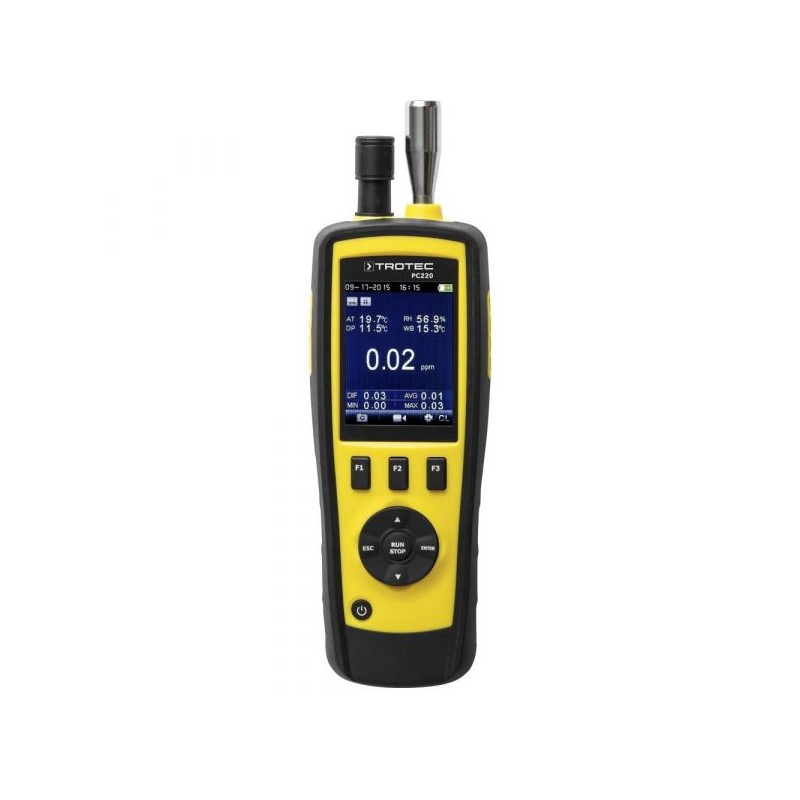

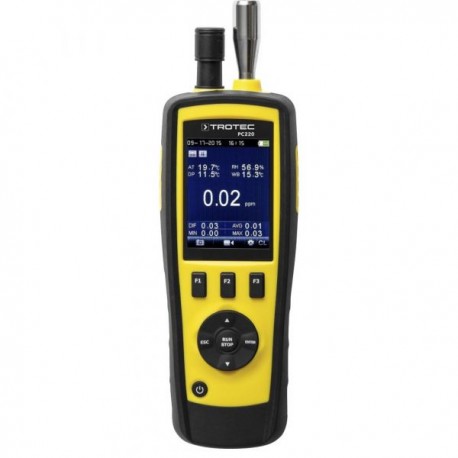

Trotec PC220 particle counter.
Portable particle counter with HCHO sensor (formaldehyde) and photo/video function, perfect for monitoring and assessing air quality in industrial and hospital environments.

More details

Online only

PC220-3510006015

New product

More info

Trotec PC220 particle counter.
Portable particle counter with HCHO sensor (formaldehyde) and photo/video function, perfect for monitoring and assessing air quality in industrial and hospital environments e.g.
The many functions of this particle counter and its compliance with ISO-21501-4 allow it to be used for various applications, for the control of clean rooms, the verification of filter efficiency, the measurement of suspended particles at work or quality controls.
The device has six ways to measure particles of six different sizes. The result of each lane is displayed on the screen.
In case of critical concentrations, a colour signal appears on the screen and a beep sounds.

In addition to the concentration and distribution of the size of suspended particles, the PC220 particle counter measures temperature, humidity, dew point and wet temperature. In addition, an integrated HCHO sensor measures formaldehyde concentrations in the air from 0.01 ppm.
The PC220 also provides a quantitative assessment of fine dust emissions with an aerodynamic diameter of less than 10 m (inhalable dust) and less than 2.5 m (alveolar fraction).

Strengths and practical details :

  • Particle counter with a long-life laser diode
  • IsOL 21501-4 compliant
  • 6 lanes corresponding to 6 diameters of different particles between 0.3 and 10 m
  • Detects fraction and concentration of airborne particles
  • Integrated gas sensor measuring formaldehyde and carbon monoxide concentrations
  • Direct display and conversion of inhalable dust or alveolar fractions to micrograms per cubic metre of air
  • Measuring ambient temperature, dew point and relative, moist humidity
  • Internal memory for 5000 results (possibility to store more data on MicroSD card of 16GB max. - not provided)
  • Integrated digital camera for taking photos and making video footage
  • Indication of critical concentrations using an audible and light signal
  • 2.8" lcd color screen, backlightable, simultaneous display of all results

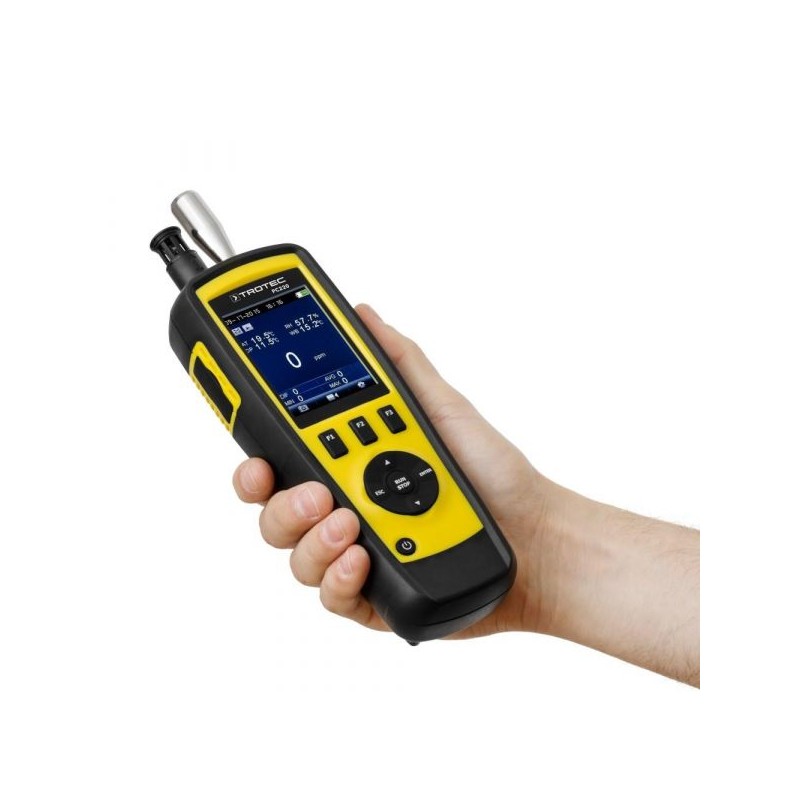

  • Easy one-handed handling
  • Tripod threading (supplied) to perform continuous measurements
  • Exporting data to PC via USB interface
  • Exists with calibration certificate

Technical features:
Particle counter Trotec PC220

  • Measuring channels: 6
  • Spectrum of measurable sizes: 0.3 m, 0.5 m, 1.0 m, 2.5 m, 5.0 m, 10.0 m
  • Measurement methods: concentration, cumulative, comparative
  • Sensitivity: 50% to 0.3 m; 100% for particles > 0.45 m
  • Flow: 2.83 l/min (0.1 ft3/min), internal pump regulation
  • Zero count: < 1 particle/5 min
  • Coincidence loss: 5%, 2 million particles per ft3 (28.3 litres)
  • Lighting source: 3B-class laser, 780 nm, 90 mW wavelength
  • Sample: isocintic probe

Room temperature:
Measuring range: 0 to 50 degrees Celsius (32 to 122 degrees Fahrenheit)
Accuracy: 10 - 40 degrees Celsius (50 - 104 degrees Fahrenheit) ±0.5 degrees Celsius (0.9 degrees Fahrenheit), beyond: ±1.0 degrees Celsius (1.8 degrees Fahrenheit)

Relative humidity

  • Measurement range: 0 to 100% h.r.
  • Accuracy 40 - 60% ±3%, 20 - 40% and 60 - 80% ±3.5%, 0 - 20% and 80 - 100% ±5%

Dew point

  • Measuring range: -30 to 100 degrees Celsius (-22 to 199 degrees Fahrenheit)
  • Accuracy: 10 - 40 degrees Celsius (50 - 104 degrees Fahrenheit) ±0.5 degrees Celsius (0.9 degrees Fahrenheit), beyond: ±1.0 degrees Celsius (1.8 degrees Fahrenheit)

Wet temperature

  • Measuring range: 0 to 80 degrees Celsius (32 to 176 degrees Fahrenheit)
  • Accuracy: ±1.0 degrees Celsius (1.8 degrees Fahrenheit)

Formaldehyde (HCHO)

  • Measuring range: 0.01 to 5.00 ppm
  • Accuracy: ±5% of result

Carbon monoxide (CO)

  • Measuring range: 10 to 1,000 ppm
  • Accuracy: ±5% of result

Conversion of the number of particles en masse

  • PM2.5: 0 to 2000 g/m3
  • PM10: 0 to 2000 g/m3

Data storage

  • Results: 5000 results on Flash internal memory (optional microSD card, max. 8GB)
  • Photos: JPEG format, 640 x 480 pixel resolution
  • Videos: 3GP format, 320 x 240 pixel resolution

Other features

  • Screen: 2.8" color lcd screen, 320 x 240 pixels, back-lighting
  • Functions: display of max, min. and moy values, screen freeze, alarm, language selection, 'C/F', photo/video, automatic sleep adjustable by the user (screen after 90s, 2 min or 4 min of inactivity, camera after 3 min, 15 min or 60 min)
  • Location for microSD card
  • USB socket

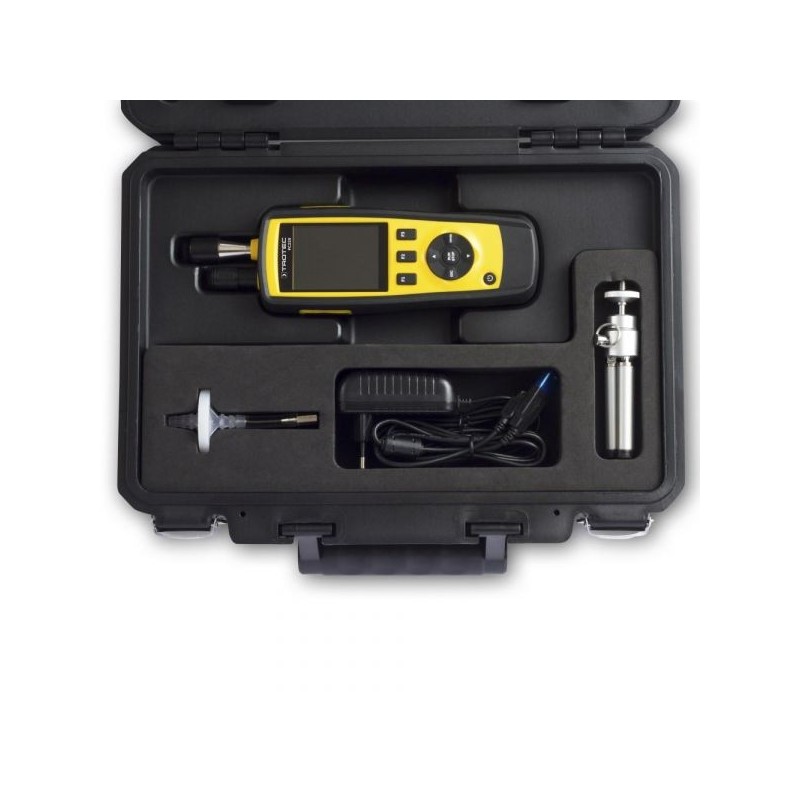

  • Comes with: mini tripod, transport case, zero filter and fitting hose, charger, USB charging cord, software, instructions for use.

Power:

  • Battery type: li-ion polymer
  • Autonomy: about 4 hours in continuous operation
  • Loading time: about 2 hours with CA adapter

Weight/Dimensions:

  • Weight: 570g
  • Dimensions L x l x h: 57 x 75 x 240 mm
  • Guarantee: 2 years


The software provided will be used to read the data recorded on the device (photos, Excel spreadsheets or graphics). If you own MultiMeasure Studio PRO Software, you will then be able to transfer the results using the copy/paste function in a report (several models of choice exist - existing texts are currently available in German only but are freely editable).
